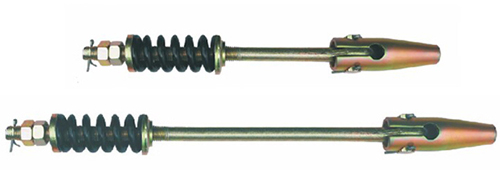

Babbit Type Rope Fastening
Elevator Battit wire rope fastening socket
Specification of the wire rope: 10mm,12mm, 14mm
Work with standard elevator parts
Place of Origin: China
Babbitt Metal Elevator steel wire rope attachment set
Specification

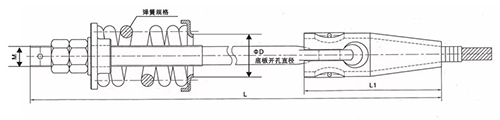

| Model | Total Length L | Srew Dia | Mounting Hole | Taper Sleeve | ||
| JGS10 | H01 | 457 | M20 | 30 | 135*42*12 | no spring |
| H02 | 650 | |||||
| JGS10W | H01 | 457 | M20 | 35 | 10*50*110*7 | |
| H02 | 650 | |||||
| JGS12 | H01 | 457 | M20 | 30 | 135*42*14 | no spring |
| H02 | 650 | |||||
| JGS12W | H01 | 457 | M20 | 35 | 10*50*110*7 | |
| H02 | 650 | |||||
| JGS14 | H01 | 457 | M20 | 30 | 135*42*16 | no spring |
| H02 | 650 | |||||
| JGS14W | H01 | 457 | M20 | 12*53*110*9 | ||
| H02 | 650 | |||||
