Elevator Door Detector B (WECO-917B71,WECOMXB B)
Technical Data:
| Model | MOLIK WECOMXB B/ WECO-917B71/ WECO-957B71 | |
| Number of diodes | 64 | |
| Maximum beams | 128 beams | |
| Highest Detecting height | 1841 mm Elevator Door Detector | |
| Lowest Detecting height | 20 mm | |
| Profile dimension | 2000mm (height) × 10mm (thickness) × 38mm (width) | |
| Detecting distance | 0 - 4000mm | |
| Vertical tolerance | +/- 10mm,7° | |
| Horizontal tolerance | +/- 3mm,5° | |
| Response Time (Relay) | 57.5ms | |
| Cable reliability | 30 million door movements | |
| Power consumption | ≤4W or 100Ma @ DC24V | |
| Voice reminder | Buzzer In RX,after continuous detection for 15s,buzzer On | |
| Light immunity | ≥100000 LUX | |
| EMC compliance | Emission to EN12015, Immunity to EN12016 | |
| Operating temperature range | -20℃~+65℃ | |
| IP Rating | IP54(TX,RX) | |
| Vibration test | Random vibration 20 to 500Hz for 4hrs per axis(X,Y,Z) Sinusoidal vibration 30Hz for 30mins per axis(X,Y,Z) |
|
Power Supply:
| Model | Voltage Range | |
| AC220V | Input voltage 220V±15% | |
| AC110V | Input voltage 110V±15% | |
| DC24V | 10-30V | |

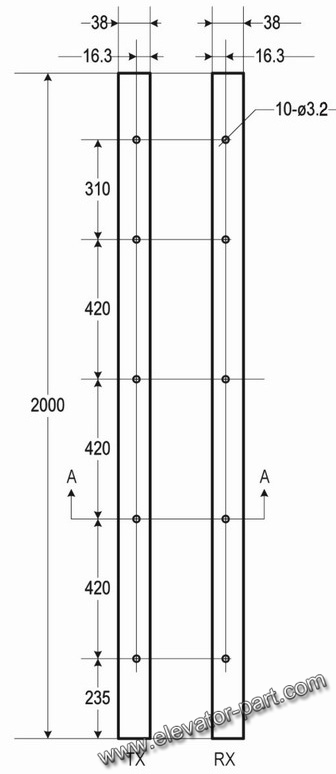

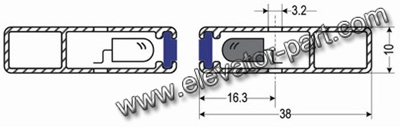

Installation drawing:
Packing List:
| Item | Quantity | |
Control Box ( Power Supply Unit ) |
1 PCS | |
| Transmitter | 1 PCS | |
| Receiver | 1 PCS | |
| Flexible Cable | 2 PCS | |
| User Manual | 1 PCS | |
| Mounting Accessories | 1 SET | |
